Plastic crate machine 550TON
YJC-550
Injection Weight(PS): 2011~2545g
Plasticizing Capacity(PS): 56~68g/s
Clamping force: 5500KN
Toggle stroke: 840mm
Tie bar space: 830x830mm
Servo motor power: 55KW
Heater power: 41KW
Machine dimension: 9300x2070x2500mm
Optimized feature:
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. Like crate(less than 2kg) cycle time20S;
2. Specially designed screw and barrel with structure of quicker plasticization, shorten the material charging cycle time.
Optional with bi-metal screw and barrel to compatible with recycling material for crate.
3. Optional with automatic facilities to improve the production efficiently.
Quantity
----plastic crate injection molding machine，fruit crate injection molding machine，turnover box injection molding machine
Optimized feature:
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. Like crate(less than 2kg) cycle time20S;
2. Specially designed screw and barrel with structure of quicker plasticization, shorten the material charging cycle time.
3. Optional with bi-metal screw and barrel to compatible with recycling material for crate .----turnover box injection molding machine
4. Optional with automatic facilities to improve the production efficiently.
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. Like crate(less than 2kg) cycle time20S;
2. Specially designed screw and barrel with structure of quicker plasticization, shorten the material charging cycle time.
3. Optional with bi-metal screw and barrel to compatible with recycling material for crate .----turnover box injection molding machine
4. Optional with automatic facilities to improve the production efficiently.
5. YONGJIA plastic crate injection molding machine is designed and manufactured base on many years of experience in fruit crate injection molding machine industry
----plastic crate injection molding machine，fruit crate injection molding machine，turnover box injection molding machine

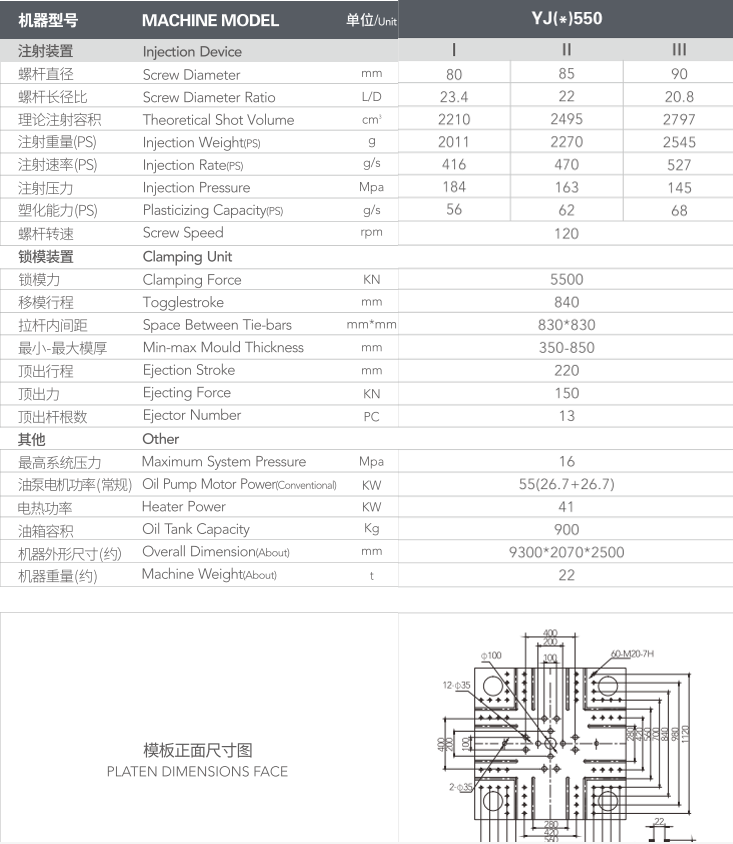

Machine specification：
