Gravimetric blenders
HGB-2-4
The HGB series weighing-type mixing and coloring machine is suitable for situations where multiple raw materials need to be measured and mixed in weight proportion in plastic injection, extrusion, or hollow molding process.
The controller of this series of products uses the Austrian B&R control system and adopts an adaptive algorithm, which can automatically calibrate during the first startup to ensure accuracy and ease of operation.
The series uses a high-precision AD conversion module, which allows the mixing ratio error of each batch to be controlled within ±0.1% to 0.5% (depending on the set ratio proportion).
The appropriate machine model can be chosen according to the number of materials to be processed and the hourly usage, with hourly processing capacity ranging from 40 to over 4000 kilograms.
The controller of this series of products uses the Austrian B&R control system and adopts an adaptive algorithm, which can automatically calibrate during the first startup to ensure accuracy and ease of operation.
The series uses a high-precision AD conversion module, which allows the mixing ratio error of each batch to be controlled within ±0.1% to 0.5% (depending on the set ratio proportion).
The appropriate machine model can be chosen according to the number of materials to be processed and the hourly usage, with hourly processing capacity ranging from 40 to over 4000 kilograms.
Quantity
Gravimetric blenders
gravimetric mixer special features：
● All materials are uniformly mixed after gravity measurement, with strict control accuracy;
● gravimetric blender Advanced batching technology effectively controls and measures the proportion of each processing raw material;
● Automatic repeated calibration function will automatically correct and adjust after each weighing, ensuring batching accuracy;
● Up to 6 raw materials can be processed at the same time;
● gravimetric blenders Modular and detachable structure design for easy cleaning;
● gravimetric mixer With formula storage function, up to 20 sets of formula can be stored;
● With alarm history recording function;
● Standard gravimetric blender is machine-mounted (with standard base and manual discharge plate);
● gravimetric blenders Optional USB data export function to save and record batching data for production quality management;
● When changed to the European safety circuit type, the gravimetric mixer model is marked with"CE".
● gravimetric blender Advanced batching technology effectively controls and measures the proportion of each processing raw material;
● Automatic repeated calibration function will automatically correct and adjust after each weighing, ensuring batching accuracy;
● Up to 6 raw materials can be processed at the same time;
● gravimetric blenders Modular and detachable structure design for easy cleaning;
● gravimetric mixer With formula storage function, up to 20 sets of formula can be stored;
● With alarm history recording function;
● Standard gravimetric blender is machine-mounted (with standard base and manual discharge plate);
● gravimetric blenders Optional USB data export function to save and record batching data for production quality management;
● When changed to the European safety circuit type, the gravimetric mixer model is marked with"CE".
optional project：
● You need optional mounting frame, pneumatic discharge valve, storage bin and suction box when the machine is used for ground installation
NOTE:
● The mixing ratio error is the difference between the setting percentage and the actual percentage;
● The knife metering valve is suitable for the proportion of 5% and above, the mixing ratio error can be controlled in ±0.3-0.5%;
● Screw or micro-meter suitable for 5% to 0.5% ratio, mixing ratio error can be controlled in ±0.2%;
● The maximum throughput and the mixing ratio error data are based on the continuous density of 0.8 kg/L and the diameter of 3-4 mm. The maximum output will vary according to the number and proportion of the metering group;
● Please ensure the valve pressure 6kgf/cm2;
● gravimetric mixer Standard voltage: HGB-5 and below models 1 Phase, 220V, 50 Hz, HGB 10 and above models 3 Phase, 380V, 50Hz;
● gravimetric blenders Specifications are subject to change without prior notice.
Welcome to visit our gravimetric mixer factory which is located in Ningbo China.

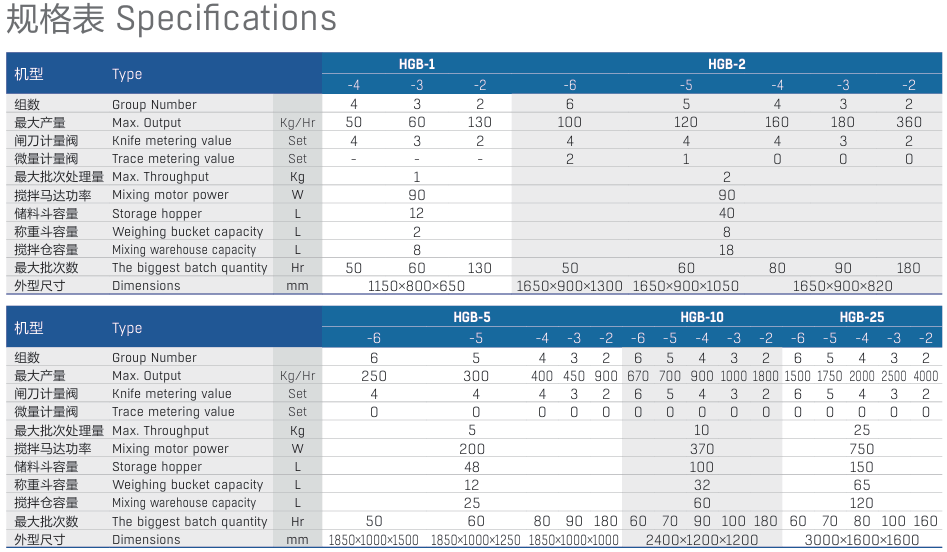

gravimetric blenders specification：
