Servo energy-saving injection molding machine 130TON
YJS130
Injection Weight(PS): 211~267g
Plasticizing Capacity(PS): 15~19g/s
Clamping force: 1300KN
Toggle stroke: 380mm
Tie bar space: 410x410mm
Servo motor power: 13KW
Heater power: 10.6KW
Machine dimension: 4600x1150x1885mm
YONGJIANG injection molding machines have been exported to more than 35 countries.
The range of clamping force is from 100 ton to 3000 ton, and the range of injection weight is from 80g to 45000g.
Quantity
China leading manufacturer for mini Injection molding machine
As leading company for mini injection molding machine,YONGJIANG focus on the different types of Injection molding machine components since year 1997.The mini injection molding machine is suitable for producing electronic products, color plates, and other small plastic parts. because of Its small size and fast speed, YONGJIANG mini Injection molding machine are well received by customers.
Mold clamping unit of plastic injection machine parts: the internal structure is a five-point elbow lock mold mechanism, reinforced with finite element analysis, effectively reducing stress and deformation, and improving the rigidity and precision of the mold clamping structure of mini Injection molding machine.
The support of the moving platen uses a slider-adjustable support system to improve the parallelism of the platen, protect plastic injection machine parts such as the tie bar and the mold and other plastic Injection machine parts, and extend their service life.
The injection molding machine components tie bar is made of high-quality alloy structural steel, which is strictly processed and plated with hard chromium, and has high strength and wear resistance for mini injection molding machine.
Injection unit of plastic injection machine parts: each machine model has multiple screw diameters to choose from, which can adapt to a wider range of products. A variety of special engineering screws ensure product optimization.
injection molding machine components High-quality alloy nitrided or chrome-plated screws, nitrided barrel, have the characteristics of corrosion resistance, wear resistance, and long service life.
The injection unit uses dual-column support and dual-barrel balanced injection device to ensure uniform force balance of the screw during the injection process.
Hydraulic of plastic injection machine parts: The oil circuit board is distributed near the actuator (oil cylinder, oil motor), which has a fast response speed and good dynamic performance.
The pre-plastic back pressure allows the melt to be precise and stable, which can meet the different injection molding processes of various new products.
Injection molding machine components The control valve is used to accurately control each movement of the mini injection molding machine. The quantitative pump control system has stable output, fast response speed, and strong force.
All Injection molding machine components such as hydraulic components and sealing components are branded for mini Injection molding machine.
Electric control of plastic injection machine parts:
injection molding machine components LEDs display the input/output status, making it easier for operators and maintenance personnel to understand the system's action status of mini injection molding machine.
The keyboard lock function is set to prevent operators from arbitrarily changing the molding data.
Precise control of the barrel temperature is achieved through computer setting and PID closed-loop mode, with a temperature range of 0-399°C. all injection molding machine components are good quality.
The fully enclosed electrical control box has a neat layout of electrical components, is dustproof and waterproof, and the control panel uses an LCD color screen to monitor the production process in real time and display various fault diagnoses. all plastic injection machine parts are famous brand.
The dedicated computer control system for mini Injection molding machine is easy to operate and has a fast response cycle.
Lubrication of plastic injection machine parts: The design of the elbow with oil storage bushing is equipped with a centralized automatic lubrication system. This results in better lubrication of various Injection molding machine components and improves the service life of the joints of mini injection molding machine.
welcome to visit YONGJIANG mini injection molding machine manufacturer which is located in ningbo China.
Mold clamping unit of plastic injection machine parts: the internal structure is a five-point elbow lock mold mechanism, reinforced with finite element analysis, effectively reducing stress and deformation, and improving the rigidity and precision of the mold clamping structure of mini Injection molding machine.
The support of the moving platen uses a slider-adjustable support system to improve the parallelism of the platen, protect plastic injection machine parts such as the tie bar and the mold and other plastic Injection machine parts, and extend their service life.
The injection molding machine components tie bar is made of high-quality alloy structural steel, which is strictly processed and plated with hard chromium, and has high strength and wear resistance for mini injection molding machine.
Injection unit of plastic injection machine parts: each machine model has multiple screw diameters to choose from, which can adapt to a wider range of products. A variety of special engineering screws ensure product optimization.
injection molding machine components High-quality alloy nitrided or chrome-plated screws, nitrided barrel, have the characteristics of corrosion resistance, wear resistance, and long service life.
The injection unit uses dual-column support and dual-barrel balanced injection device to ensure uniform force balance of the screw during the injection process.
Hydraulic of plastic injection machine parts: The oil circuit board is distributed near the actuator (oil cylinder, oil motor), which has a fast response speed and good dynamic performance.
The pre-plastic back pressure allows the melt to be precise and stable, which can meet the different injection molding processes of various new products.
Injection molding machine components The control valve is used to accurately control each movement of the mini injection molding machine. The quantitative pump control system has stable output, fast response speed, and strong force.
All Injection molding machine components such as hydraulic components and sealing components are branded for mini Injection molding machine.
Electric control of plastic injection machine parts:
injection molding machine components LEDs display the input/output status, making it easier for operators and maintenance personnel to understand the system's action status of mini injection molding machine.
The keyboard lock function is set to prevent operators from arbitrarily changing the molding data.
Precise control of the barrel temperature is achieved through computer setting and PID closed-loop mode, with a temperature range of 0-399°C. all injection molding machine components are good quality.
The fully enclosed electrical control box has a neat layout of electrical components, is dustproof and waterproof, and the control panel uses an LCD color screen to monitor the production process in real time and display various fault diagnoses. all plastic injection machine parts are famous brand.
The dedicated computer control system for mini Injection molding machine is easy to operate and has a fast response cycle.
Lubrication of plastic injection machine parts: The design of the elbow with oil storage bushing is equipped with a centralized automatic lubrication system. This results in better lubrication of various Injection molding machine components and improves the service life of the joints of mini injection molding machine.
welcome to visit YONGJIANG mini injection molding machine manufacturer which is located in ningbo China.

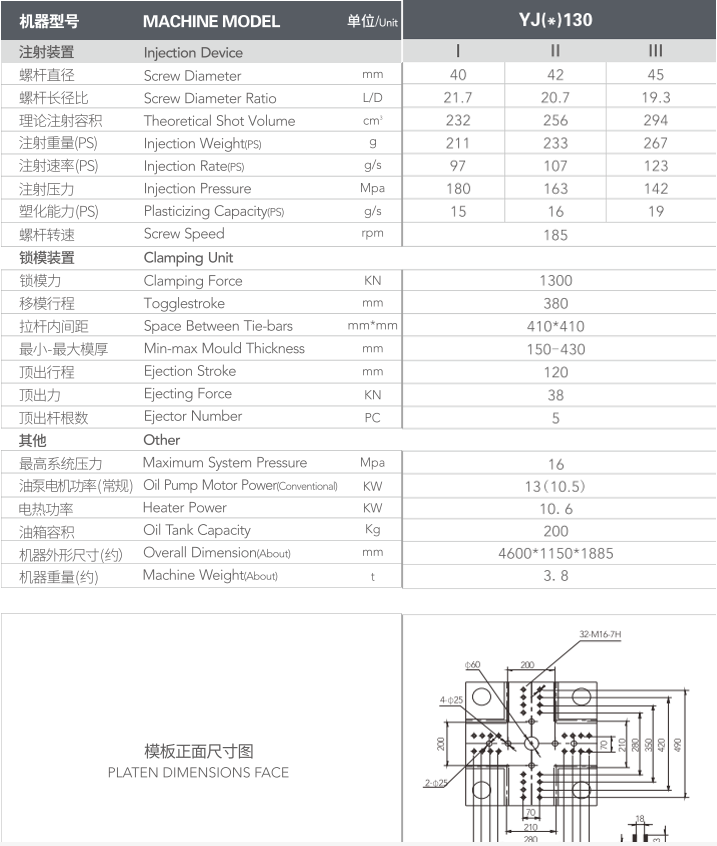

mini Injection molding Machine 130TON specification：
