Paint buckets injection molding machine 550TON
YJB-550
Injection Weight(PS): 2011~2545g
Plasticizing Capacity(PS): 56~68g/s
Clamping force: 5500KN
Toggle stroke: 840mm
Tie bar space: 830x830mm
Servo motor power: 55KW
Heater power: 41KW
Machine dimension: 9300x2070x2500mm
Optimized Feature:
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. paint bucket(780-800g) cycle time 20S.
2. Specially designed screw and barrel with structure of quicker plasticization, reduce the material charging cycle.
3. Optional with automatic facilities to improve the production efficiently.
4. Especially for 20L paint buckets.
Quantity
China Top brand 20l paint bucket Injection molding machine supplier
As a professional Injection molding machine supplier in China with 28 years of experience,YONGJIANG Group focus on the 20l paint bucket Injection molding machine research and development many years,and had developped a special Injection molding machine for paint bucket with optimized function.
With the improvement of living quality, and much more requirements for building decoration are getting higher and higher. In order to achieve better decoration effect, the use of paint is becoming more and more frequent and widespread. Therefore, in the process of coatings construction, the paint bucket is indispensable for us Injection molding machine supplier.

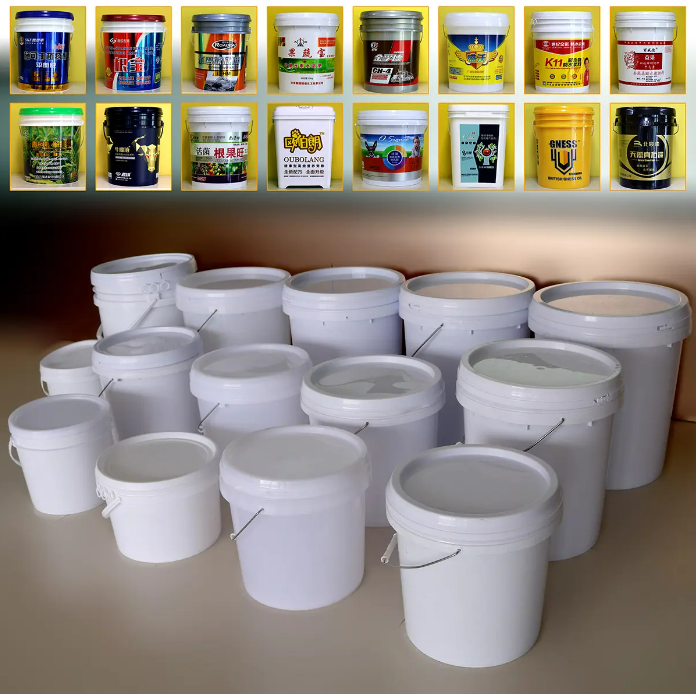

The structural characteristics of the paint bucket:
1. The bucket body and the bucket cover have multiple unique sealing points to ensure that the liquid does not leak.Be suitable for Injection molding machine for paint bucket.
2. The inner edge of the bucket cover is reinforced with a circle to ensure that the stacking load is transferred to the reinforcement rib. it is also important for us Injection molding machine supplier.
3. The bottom of the bucket and the bucket cover are matched with each other to ensure stable stacking during storage and transportation.China Injection molding machine supplier understand the point.
4. The bucket cover has a circle of easily torn rings to ensure that the cover is not opened when it falls during transportation.As a leading Injection molding machine supplier, we understand that point.
5. It has good anti-counterfeiting measures, and the ring must be torn off to open the cover, ensuring that the brand-name products are not counterfeited.
be Widely used in the packaging of building coatings, chemical additives, engine oil, lubricating oil, and solid items.As a leading Injection molding machine supplier,we keep moving forward.
The structural characteristics of the paint bucket:
1. The bucket body and the bucket cover have multiple unique sealing points to ensure that the liquid does not leak.Be suitable for Injection molding machine for paint bucket.
2. The inner edge of the bucket cover is reinforced with a circle to ensure that the stacking load is transferred to the reinforcement rib. it is also important for us Injection molding machine supplier.
3. The bottom of the bucket and the bucket cover are matched with each other to ensure stable stacking during storage and transportation.China Injection molding machine supplier understand the point.
4. The bucket cover has a circle of easily torn rings to ensure that the cover is not opened when it falls during transportation.As a leading Injection molding machine supplier, we understand that point.
5. It has good anti-counterfeiting measures, and the ring must be torn off to open the cover, ensuring that the brand-name products are not counterfeited.
be Widely used in the packaging of building coatings, chemical additives, engine oil, lubricating oil, and solid items.As a leading Injection molding machine supplier,we keep moving forward.
Why choose YONGJIANG paint bucket Injection molding machine？
YONGJIANG 20l paint bucket Injection molding machine production line has advantages :
High speed, efficiency, stability, and energy-saving.
1. Adopt center locking mold structure of Injection molding machine for paint bucket.
2. Adopt built-in type clamping oil cylinder of 20l paint bucket Injection molding machine.
3. Larger opening stroke of Injection molding machine for paint bucket.
4. Larger mold spaceof 20l paint bucket Injection molding machine.
5. Specially designed high-efficiency plasticizing screw from Germany.
6. Fast injection speed of Injection molding machine for paint bucket.
7. Fast melting speed: 750g for a 20L bucket, and the melting time is about 7 seconds. It can be equipped with electric pre-plasticizing to melt faster, more quietly, and more energy-saving. When needed, it can realize synchronous mold opening and melting, shortening the molding cycle.
8. High precision in mold positioning and injection repetition.Injection molding machine for paint bucket.
9. Short molding cycle: linear guides are used for mold clamping and injection, with fast mold switching, injection, and melting speed. The standard machine is equipped with synchronized ejection function, shortening the cycle. The production cycle for a 20L bucket is 19 seconds for the standard version machine (the cycle for ordinary equipment in the same industry is at least about 25 seconds).
YONGJIANG 20l paint bucket Injection molding machine can satisfy your production very well!
YONGJIANG 20l paint bucket Injection molding machine production line has advantages :
High speed, efficiency, stability, and energy-saving.
1. Adopt center locking mold structure of Injection molding machine for paint bucket.
2. Adopt built-in type clamping oil cylinder of 20l paint bucket Injection molding machine.
3. Larger opening stroke of Injection molding machine for paint bucket.
4. Larger mold spaceof 20l paint bucket Injection molding machine.
5. Specially designed high-efficiency plasticizing screw from Germany.
6. Fast injection speed of Injection molding machine for paint bucket.
7. Fast melting speed: 750g for a 20L bucket, and the melting time is about 7 seconds. It can be equipped with electric pre-plasticizing to melt faster, more quietly, and more energy-saving. When needed, it can realize synchronous mold opening and melting, shortening the molding cycle.
8. High precision in mold positioning and injection repetition.Injection molding machine for paint bucket.
9. Short molding cycle: linear guides are used for mold clamping and injection, with fast mold switching, injection, and melting speed. The standard machine is equipped with synchronized ejection function, shortening the cycle. The production cycle for a 20L bucket is 19 seconds for the standard version machine (the cycle for ordinary equipment in the same industry is at least about 25 seconds).
YONGJIANG 20l paint bucket Injection molding machine can satisfy your production very well!

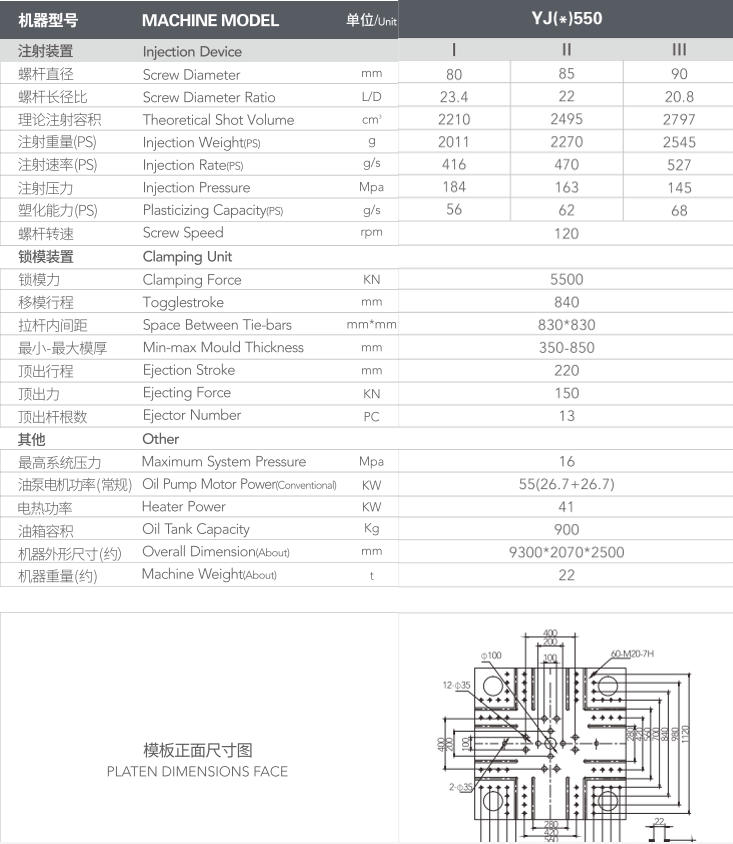

Machine specification：
