Paint buckets injection molding machine 160TON
YJB-160
Injection Weight(PS): 252~303g
Plasticizing Capacity(PS): 16~21g/s
Clamping force: 1600KN
Toggle stroke: 420mm
Tie bar space: 440x440mm
Servo motor power: 15KW
Heater power: 10.55KW
Machine dimension: 4850x1250x1960mm
Optimized Feature:
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. paint bucket(780-800g) cycle time 20S.
2. Specially designed screw and barrel with structure of quicker plasticization, reduce the material charging cycle.
3. Optional with automatic facilities to improve the production efficiently.
4. Especially for 4L/5L paint buckets.
Quantity
China Top brand plastic Injection moulding machinery
As a professional china paint bucket Injection machine manufacturer with 28 years of experience,YONGJIANG Group focus on the Injection molding machine for producing paint bucket research and development many years,and had developped a special plastic Injection moulding machinery for paint bucket with optimized function.
Optimized Feature:
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. paint bucket(780-800g) cycle time 20S.YONGJIANG plastic Injection moulding machinery already used it.
2. Specially designed screw and barrel with structure of quicker plasticization, reduce the material charging cycle.china paint bucket Injection machine such as we YONGJIANG Injection molding machine for producing paint bucket was designed with optimized technology.
3. Especially for 20L paint buckets and 4L paint buckets packaging industry
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. paint bucket(780-800g) cycle time 20S.YONGJIANG plastic Injection moulding machinery already used it.
2. Specially designed screw and barrel with structure of quicker plasticization, reduce the material charging cycle.china paint bucket Injection machine such as we YONGJIANG Injection molding machine for producing paint bucket was designed with optimized technology.
3. Especially for 20L paint buckets and 4L paint buckets packaging industry
4. YONGJIANG plastic Injection moulding machinery is designed and manufactured base on many years of experience in china paint bucket Injection machine industry.

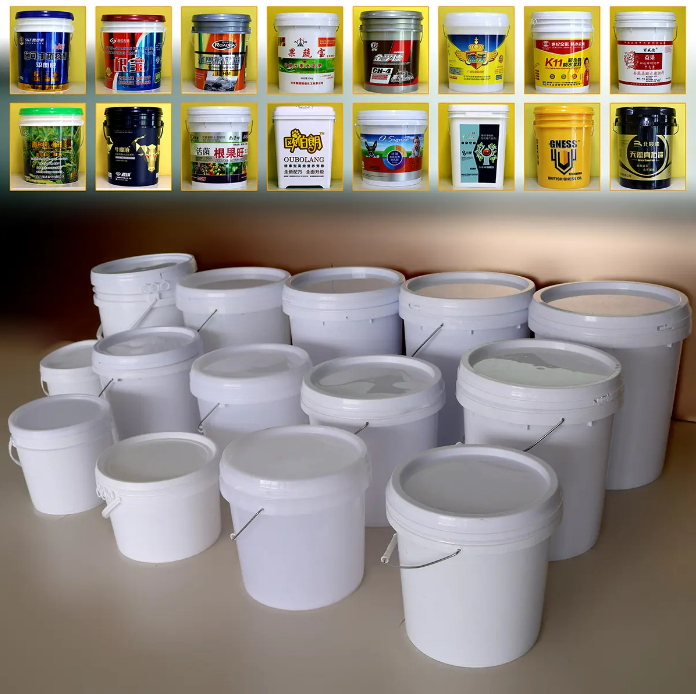

The paint bucket structural characteristics :
1. The bucket body and the bucket cover have multiple unique sealing points to ensure that the liquid does not leak.Be suitable for china paint bucket Injection machine.
2. The inner edge of the bucket cover is reinforced with a circle to make sure that the stacking load is transferred to the reinforcement rib. it is also important for plastic Injection molding machine for producing paint bucket.
3. The bottom of the bucket and the bucket lid are matched with each other to ensure stable stacking during storage and transportation.YONGJIANG plastic Injection moulding machinery can meet demand.
4. The bucket cover has a circle of easily torn rings to ensure that the cover is not opened when it falls during transportation.YONGJIANG plastic Injection machine for producing paint bucket improved it further.
Paint bucket be Widely used in the packaging of building coatings, chemical additives, engine oil, lubricating oil, and solid items.As a leading plastic Injection moulding machinery supplier,we keep moving forward.
1. The bucket body and the bucket cover have multiple unique sealing points to ensure that the liquid does not leak.Be suitable for china paint bucket Injection machine.
2. The inner edge of the bucket cover is reinforced with a circle to make sure that the stacking load is transferred to the reinforcement rib. it is also important for plastic Injection molding machine for producing paint bucket.
3. The bottom of the bucket and the bucket lid are matched with each other to ensure stable stacking during storage and transportation.YONGJIANG plastic Injection moulding machinery can meet demand.
4. The bucket cover has a circle of easily torn rings to ensure that the cover is not opened when it falls during transportation.YONGJIANG plastic Injection machine for producing paint bucket improved it further.
Paint bucket be Widely used in the packaging of building coatings, chemical additives, engine oil, lubricating oil, and solid items.As a leading plastic Injection moulding machinery supplier,we keep moving forward.
Why choose YONGJIANG Injection mould machine for producing paint bucket？
Top china paint bucket Injection machine YONGJIANG machine has advantages :
such as High speed, high efficiency, high stability, and energy-saving,durable.
1. Adopt center locking toggle structure of plastic Injection moulding machinery.
2. Adopt built-in type clamping cylinder of china paint bucket Injection machine.
3. Larger opening stroke of machine for producing paint bucket.
4. Larger mold spaceof plastic Injection moulding machinery.
5. Specially designed high-efficiency plasticizing screw from Germany.
6. Fast injection speed of china paint bucket Injection machine.
7. Fast melting speed: 750g for a 20L bucket, and the melting time is about 7 seconds. It can be equipped with electric pre-plasticizing to melt faster, more quietly, and more energy-saving. When needed, it can realize synchronous mold opening and melting, shortening the molding cycle.
8. High precision in mold positioning and injection repetition.china paint bucket Injection machine focus on it.
9. Short molding cycle: linear guides are used for mold clamping and injection, with fast mold switching, injection, and melting speed. The standard machine is equipped with synchronized ejection function, shortening the cycle. The production cycle for a 20L bucket is 19 seconds for the standard china paint bucket Injection machine.
YONGJIANG machine for producing paint bucket can satisfy your production requirements very well!
Top china paint bucket Injection machine YONGJIANG machine has advantages :
such as High speed, high efficiency, high stability, and energy-saving,durable.
1. Adopt center locking toggle structure of plastic Injection moulding machinery.
2. Adopt built-in type clamping cylinder of china paint bucket Injection machine.
3. Larger opening stroke of machine for producing paint bucket.
4. Larger mold spaceof plastic Injection moulding machinery.
5. Specially designed high-efficiency plasticizing screw from Germany.
6. Fast injection speed of china paint bucket Injection machine.
7. Fast melting speed: 750g for a 20L bucket, and the melting time is about 7 seconds. It can be equipped with electric pre-plasticizing to melt faster, more quietly, and more energy-saving. When needed, it can realize synchronous mold opening and melting, shortening the molding cycle.
8. High precision in mold positioning and injection repetition.china paint bucket Injection machine focus on it.
9. Short molding cycle: linear guides are used for mold clamping and injection, with fast mold switching, injection, and melting speed. The standard machine is equipped with synchronized ejection function, shortening the cycle. The production cycle for a 20L bucket is 19 seconds for the standard china paint bucket Injection machine.
YONGJIANG machine for producing paint bucket can satisfy your production requirements very well!

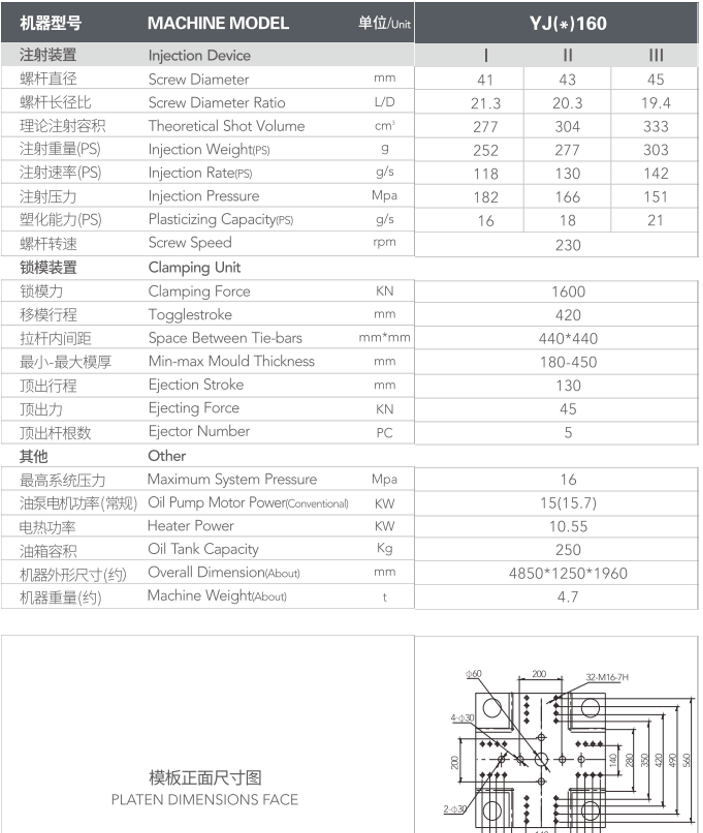

Machine for producing paint bucket 160TON specification：
