Plastic crate machine 480TON
YJC-480
Injection Weight(PS): 1707~2193g
Plasticizing Capacity(PS): 51~58g/s
Clamping force: 4800KN
Toggle stroke: 770mm
Tie bar space: 780x780mm
Servo motor power: 45KW
Heater power: 37KW
Machine dimension: 8500x1865x2505mm
Optimized feature:
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. Like crate(less than 2kg) cycle time20S;
2. Specially designed screw and barrel with structure of quicker plasticization, shorten the material charging cycle time.
Optional with bi-metal screw and barrel to compatible with recycling material for crate.
3. Optional with automatic facilities to improve the production efficiently.
Quantity
----plastic crate injection molding machine，fruit crate injection molding machine，turnover box injection molding machine
Optimized feature:
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. Like crate(less than 2kg) cycle time20S;
2. Specially designed screw and barrel with structure of quicker plasticization, shorten the material charging cycle time.
3. Optional with bi-metal screw and barrel to compatible with recycling material for crate.
4. Optional with automatic facilities to improve the production efficiently.
1. Enlarged motor & pump system, optimized hydraulic system to satisfy high-performance with quicker cycle. Like crate(less than 2kg) cycle time20S;
2. Specially designed screw and barrel with structure of quicker plasticization, shorten the material charging cycle time.
3. Optional with bi-metal screw and barrel to compatible with recycling material for crate.
4. Optional with automatic facilities to improve the production efficiently.
5. YONGJIA plastic crate injection molding machine is designed and manufactured base on many years of experience in fruit crate injection molding machine industry and turnover box injection molding machine
----plastic crate injection molding machine，fruit crate injection molding machine，turnover box injection molding machine

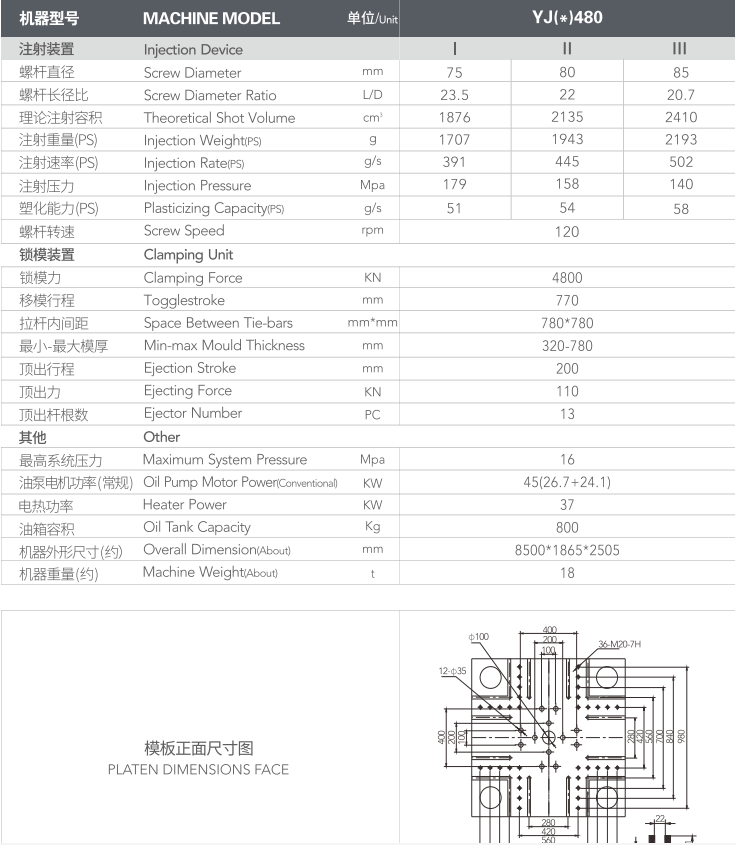

Machine specification：
