Servo energy-saving injection molding machine 1600TON
YJS1600
Injection Weight(PS): 7560~10395g
Plasticizing Capacity(PS): 149.8~199g/s
Clamping force: 16000KN
Toggle stroke: 1530mm
Tie bar space: 1500x1500mm
Servo motor power: 45KW+45KW+45KW
Heater power: 96.1KW
Machine dimension: 15.99x3.3x4.56m
YONGJIA injection moulding machines have been exported to more than 35 countries.
The range of clamping force is from 100 ton to 3000 ton, and the range of injection weight is from 80g to 45000g.
Quantity
China Top Injection molding machine companies
YONGJIANG Injection moulding machines
As a leading Injection molding machine companies in China since year 1997.YONGJIANG Machinery focus on the research and development of different types of plastic molding machine with 28 years of experience,and had developped servo motor Injection moulding machines successfully with optimized functions.
What is the difference between conventional plastic molding machine and servo motor Injection moulding machines?
The big difference between a conventional plastic molding machine and a servo plastic molding machine is primarily the motor (also called servo motor)
● Conventional plastic molding machine: runs continuously, even if the machine's movement stops, the motor keeps rotating.China Injection molding machine companies improved it with servo motor.
● Servo motor plastic molding machine: each different action will use corresponding power to supply energy, and since the machine does not move, the servo motor will completely stop.
In servo injection moulding machines, the servo motor replaces the conventional AC motor. Since the servo motor itself is a closed-loop control system, it can provide corresponding torque according to changes in pressure values to achieve control. Servo motors can be used for all drivers of the Injection moulding machines, such as pump motors and injection drivers.
The advantages of YONGJIANG servo motor plastic molding machine are as follows:
Conventional injection machines have the speed and power of using AC motors (running at a fixed speed) and various types of pumps. Although they are still less expensive than servo motors or all-electric machines, their power consumption is high, so they are more expensive to operate. Conventional injection machines can modify the variable speed control of the motor to improve energy efficiency. Compared with conventional AC motors, servo motors have many advantages. They can be controlled more accurately, consume less power, weigh less, and are considerable. On the other hand, their cost is quite high.
Advantages of servo injection moulding machines:
Now, servo driven plastic molding machine have been widely accepted by clients and their uses are becoming more diverse. In Injection molding machine companies,Servo motors have many advantages:
● Quick pressure response, fast startup to 0.05 seconds
● The system response speed is 2-3 times that of traditional machines.
● Fast and precise operation greatly improves production environment and efficiency.
● The accuracy of repeat products can be improved to more than five thousandths, meeting the requirements of ultra-precision injection molding machine companies.
● The servo motor get a signal, then fills the hydraulic oil, generates less heat, and the hydraulic oil temperature is lower, saving a lot of cooling water.
● Fast response speed, short cycle time, and improved production efficiency.
● Servo driven injection moulding machines can save 50-80% of electricity.
The big difference between a conventional plastic molding machine and a servo plastic molding machine is primarily the motor (also called servo motor)
● Conventional plastic molding machine: runs continuously, even if the machine's movement stops, the motor keeps rotating.China Injection molding machine companies improved it with servo motor.
● Servo motor plastic molding machine: each different action will use corresponding power to supply energy, and since the machine does not move, the servo motor will completely stop.
In servo injection moulding machines, the servo motor replaces the conventional AC motor. Since the servo motor itself is a closed-loop control system, it can provide corresponding torque according to changes in pressure values to achieve control. Servo motors can be used for all drivers of the Injection moulding machines, such as pump motors and injection drivers.
The advantages of YONGJIANG servo motor plastic molding machine are as follows:
Conventional injection machines have the speed and power of using AC motors (running at a fixed speed) and various types of pumps. Although they are still less expensive than servo motors or all-electric machines, their power consumption is high, so they are more expensive to operate. Conventional injection machines can modify the variable speed control of the motor to improve energy efficiency. Compared with conventional AC motors, servo motors have many advantages. They can be controlled more accurately, consume less power, weigh less, and are considerable. On the other hand, their cost is quite high.
Advantages of servo injection moulding machines:
Now, servo driven plastic molding machine have been widely accepted by clients and their uses are becoming more diverse. In Injection molding machine companies,Servo motors have many advantages:
● Quick pressure response, fast startup to 0.05 seconds
● The system response speed is 2-3 times that of traditional machines.
● Fast and precise operation greatly improves production environment and efficiency.
● The accuracy of repeat products can be improved to more than five thousandths, meeting the requirements of ultra-precision injection molding machine companies.
● The servo motor get a signal, then fills the hydraulic oil, generates less heat, and the hydraulic oil temperature is lower, saving a lot of cooling water.
● Fast response speed, short cycle time, and improved production efficiency.
● Servo driven injection moulding machines can save 50-80% of electricity.
welcome to visit YONGJIANG Injection molding machine companies in China.we are looking for sales Agent/Representative in the global market.

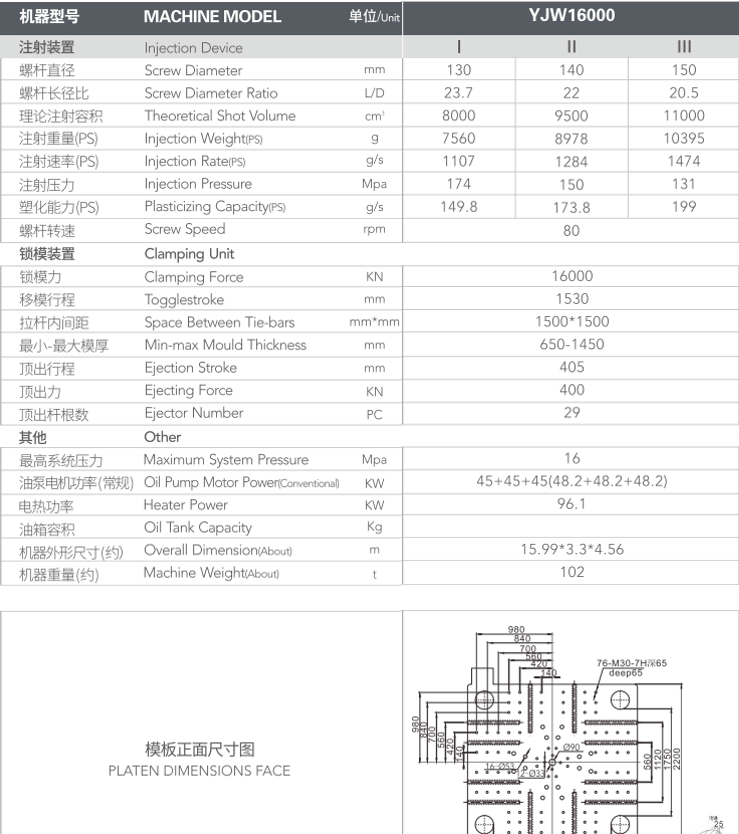

Servo Injection moulding Machines 1600TON specification：
