Servo energy-saving injection molding machine 1100TON
YJS1100
Injection Weight(PS): 3780~5972g
Plasticizing Capacity(PS): 98.3~149.8g/s
Clamping force: 11000KN
Toggle stroke: 1220mm
Tie bar space: 1160x1160mm
Servo motor power: 45KW+45KW
Heater power: 65.7KW
Machine dimension: 13.11x2.73x4.24m
YONGJIANG injection moulding machines have been exported to more than 35 countries.
The range of clamping force is from 100 ton to 3000 ton, and the range of injection weight is from 80g to 45000g.
Quantity
China leading company for servo Injection moulding machine
YONGJIANG servo Injection machine
What is the advantage of the servo energy-saving Injection molding machine？
Compared to traditional injection machines, the servo energy-saving injection molding machine is equipped with a high-performance servo variable speed power control system, which successfully achieves better matching and automatic adjustment of the energy requirements of the injection molding machine, resulting in electricity savings of 30% to 80%. At the same time, the equipment significantly shortens the operating cycle of the system for servo Injection moulding machine,and improves the productivity and reliability of the equipment, and extends the service life of the Injection machines.
1.Faster response and higher accuracy. The servo motor of the YONGJIANG servo energy-saving injection molding machine only takes 30ms to reach its rated speed from a standstill, and the repeatability of low-pressure and low-flow is ±0.5%, while avoiding the latency of a frequency conversion motor. Compared to traditional injection machines, its pressure flow speed response is only about 0.03s, which not only significantly improves the repeatability, but also achieves a positioning accuracy of within 0.1mm.
2. Shorter molding cycle and higher efficiency. Due to the use of a servo motor, the time required for each action of the servo injection moulding machine to start and stop is reduced, and the elimination of the proportional valve reduces hydraulic leakage and increases speed.
3. Lower motor energy consumption. Compared to the efficiency of around 80% of traditional asynchronous motors, the efficiency of the servo motor of the same power in this Injection machines can reach over 90%, which is more energy-saving for servo Injection moulding machine.
4. The current of traditional motors during startup is five times that during normal operation, but the YONGJIANG servo energy-saving injection molding machine adopts a soft start mode, and will not cause an impact on the power grid.
5.Water and oil conservation. The system is highly efficient, which can effectively avoid temperature rise of the oil and reduce the capacity of water cooling, and consequently reduce the replacement rate of hydraulic oil. Through tracking and investigation of some pipe manufacturers, it was found that the Injection machines only needs to use cooling water for 10 to 20 days in summer, and the amount of cooling water used is only one-third that of traditional injection machines in a year.
6.Lower noise. The main source of noise from servo energy-saving injection molding machine is the power system. The power system composed of servo motors and gear pumps has very low noise due to its working characteristics, so servo injection moulding machine equipped with this system are particularly quiet.
1.Faster response and higher accuracy. The servo motor of the YONGJIANG servo energy-saving injection molding machine only takes 30ms to reach its rated speed from a standstill, and the repeatability of low-pressure and low-flow is ±0.5%, while avoiding the latency of a frequency conversion motor. Compared to traditional injection machines, its pressure flow speed response is only about 0.03s, which not only significantly improves the repeatability, but also achieves a positioning accuracy of within 0.1mm.
2. Shorter molding cycle and higher efficiency. Due to the use of a servo motor, the time required for each action of the servo injection moulding machine to start and stop is reduced, and the elimination of the proportional valve reduces hydraulic leakage and increases speed.
3. Lower motor energy consumption. Compared to the efficiency of around 80% of traditional asynchronous motors, the efficiency of the servo motor of the same power in this Injection machines can reach over 90%, which is more energy-saving for servo Injection moulding machine.
4. The current of traditional motors during startup is five times that during normal operation, but the YONGJIANG servo energy-saving injection molding machine adopts a soft start mode, and will not cause an impact on the power grid.
5.Water and oil conservation. The system is highly efficient, which can effectively avoid temperature rise of the oil and reduce the capacity of water cooling, and consequently reduce the replacement rate of hydraulic oil. Through tracking and investigation of some pipe manufacturers, it was found that the Injection machines only needs to use cooling water for 10 to 20 days in summer, and the amount of cooling water used is only one-third that of traditional injection machines in a year.
6.Lower noise. The main source of noise from servo energy-saving injection molding machine is the power system. The power system composed of servo motors and gear pumps has very low noise due to its working characteristics, so servo injection moulding machine equipped with this system are particularly quiet.
Welcome to YONGJIANG servo energy-saving Injection molding machine company, we are looking for sales Agent/Representative in Global Market.

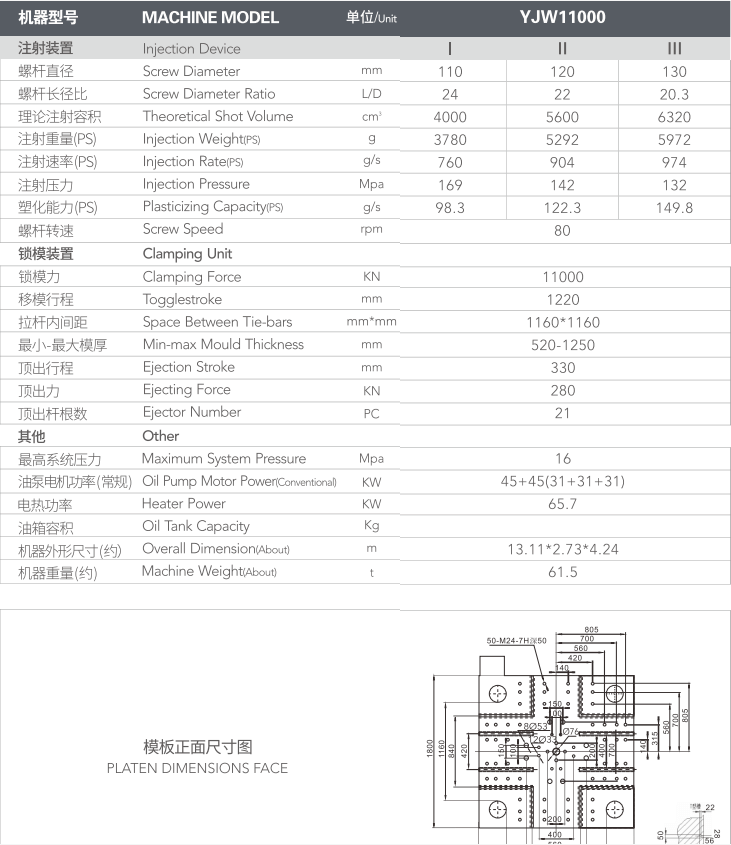

servo Injection moulding Machine 1100TON specification：
