Servo energy-saving injection molding machine 850TON
YJS850
Injection Weight(PS): 3643~5246g
Plasticizing Capacity(PS): 86~108g/s
Clamping force: 8500KN
Toggle stroke: 1020mm
Tie bar space: 1030x1030mm
Servo motor power: 30KW+45KW
Heater power: 70.2KW
Machine dimension: 11.7x2.68x2.74m
YONGJIANG injection moulding machines have been exported to more than 35 countries.
The range of clamping force is from 100 ton to 3000 ton, and the range of injection weight is from 80g to 45000g.
Quantity
China leading factory for servo motor Injection moulding machine
YONGJIANG servo motor Injection machine
What is the advantage of the servo motor Injection moulding machine？
Compared to traditional plastic machinery, the servo motor injection machine is equipped with a high-performance servo variable speed power control system, which successfully achieves better automatic adjustment of the energy requirements of the plastic machinery, resulting in electricity savings of 30% to 80%. At the same time, the equipment significantly shortens the operating cycle of the system for servo motor Injection moulding machine,and improves the productivity and reliability of the equipment, and extends the service life of the Injection machines.
1.Faster response and higher accuracy. The servo motor of the YONGJIANG servo motor Injection machine only takes 30ms to reach its rated speed from a standstill, and the repeatability of low-pressure and low-flow is ±0.5%, while avoiding the latency of a frequency conversion motor. Compared to traditional plastic machinery, its pressure flow speed response is only about 0.03s, which not only significantly improves the repeatability, but also achieves a positioning accuracy of within 0.1mm.
2. Shorter molding cycle and higher efficiency. Due to the use of a servo motor, the time required for each action of the servo motor injection moulding machine to start and stop is reduced, and the elimination of the proportional valve reduces hydraulic leakage and increases speed.
3. Lower motor energy consumption. Compared to the efficiency of around 80% of traditional asynchronous motors, the efficiency of the servo motor of the same power in this plastic machinery can reach over 90%, which is more energy-saving for servo motor Injection machine.
4. The current of traditional motors during startup is five times that during normal operation, but the YONGJIANG servo motor injection moulding machine adopts a soft start mode, and will not cause an impact on the power grid.
5.Water and oil conservation. The system is highly efficient, which can effectively avoid temperature rise of the oil and reduce the capacity of water cooling, and consequently reduce the replacement rate of hydraulic oil. Through tracking and investigation of some pipe manufacturers, it was found that the plastic machinery only needs to use cooling water for 10 to 20 days in summer, and the amount of cooling water used is only one-third that of traditional plastic machinery in a year.
6.Lower noise. The main source of noise from servo motor injection machine is the power system. The power system composed of servo motors and gear pumps has very low noise due to its working characteristics, so servo motor injection machine equipped with this system are particularly quiet.
1.Faster response and higher accuracy. The servo motor of the YONGJIANG servo motor Injection machine only takes 30ms to reach its rated speed from a standstill, and the repeatability of low-pressure and low-flow is ±0.5%, while avoiding the latency of a frequency conversion motor. Compared to traditional plastic machinery, its pressure flow speed response is only about 0.03s, which not only significantly improves the repeatability, but also achieves a positioning accuracy of within 0.1mm.
2. Shorter molding cycle and higher efficiency. Due to the use of a servo motor, the time required for each action of the servo motor injection moulding machine to start and stop is reduced, and the elimination of the proportional valve reduces hydraulic leakage and increases speed.
3. Lower motor energy consumption. Compared to the efficiency of around 80% of traditional asynchronous motors, the efficiency of the servo motor of the same power in this plastic machinery can reach over 90%, which is more energy-saving for servo motor Injection machine.
4. The current of traditional motors during startup is five times that during normal operation, but the YONGJIANG servo motor injection moulding machine adopts a soft start mode, and will not cause an impact on the power grid.
5.Water and oil conservation. The system is highly efficient, which can effectively avoid temperature rise of the oil and reduce the capacity of water cooling, and consequently reduce the replacement rate of hydraulic oil. Through tracking and investigation of some pipe manufacturers, it was found that the plastic machinery only needs to use cooling water for 10 to 20 days in summer, and the amount of cooling water used is only one-third that of traditional plastic machinery in a year.
6.Lower noise. The main source of noise from servo motor injection machine is the power system. The power system composed of servo motors and gear pumps has very low noise due to its working characteristics, so servo motor injection machine equipped with this system are particularly quiet.
Welcome to YONGJIANG servo motor Injection moulding machine company, we are looking for sales Agent/Representative in Global Market.

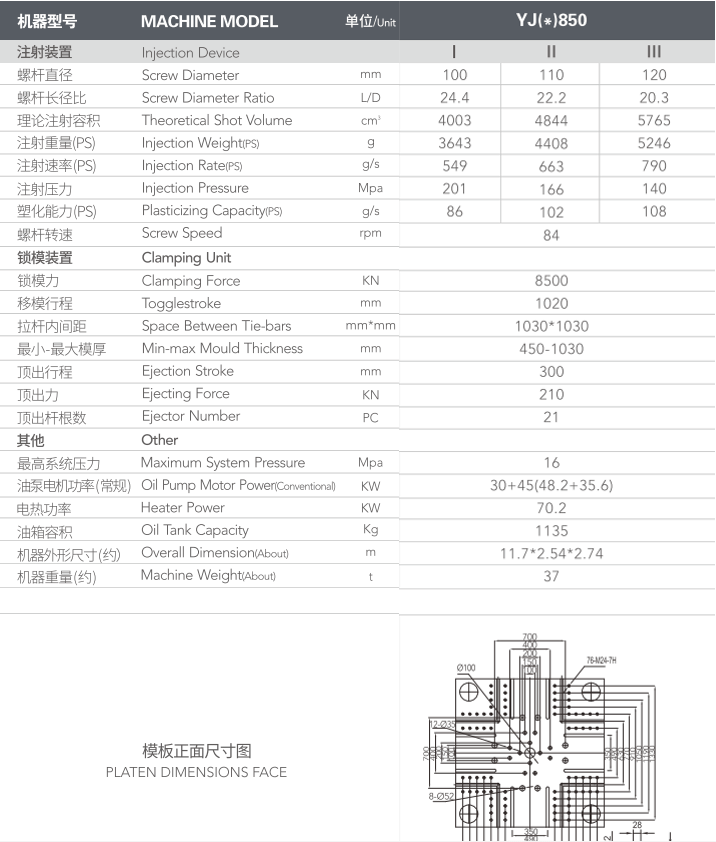

servo motor Injection Machine 850TON specification：
