Servo energy-saving injection molding machine 1300TON
YJS1300
Injection Weight(PS): 4200~7130g
Plasticizing Capacity(PS): 101.5~140g/s
Clamping force: 13000KN
Toggle stroke: 1360mm
Tie bar space: 1300x1300mm
Servo motor power: 65KW+65KW
Heater power: 65.7KW
Machine dimension: 13.55x2.88x4.13m
YONGJIA injection moulding machines have been exported to more than 35 countries.
The range of clamping force is from 100 ton to 3000 ton, and the range of injection weight is from 80g to 45000g.
Quantity
China Top servo motor Injection molding machine supplier
YONGJIANG servo Injection machine
As a leading servo motor Injection molding machine factory in China since year 1997.YONGJIANG Machinery focus on the research and development of different types of plastic Injection moulding machinery with 28 years of experience,and had developped servo Injection machine successfully with optimized functions and performance.
What is the difference between traditional plastic Injection moulding machinery and servo motor Injection molding machine?
The big difference between a traditional machine and a servo Injection machine is mainly the motor type (also called servo motor)
● traditional Injection machine: runs continuously, even if the machine's movement stops, the motor keeps rotating.YONGJIANG servo motor Injection molding machine improved it with servo motor.
● Servo Injection machine: each different action will use corresponding power to supply energy, and since the machine does not move, the servo motor will completely stop.
In servo motor injection molding machine, the servo motor replaces the conventional AC motor. Since the servo motor itself is a closed-loop control system, it can provide corresponding torque according to changes in pressure values to achieve control. Servo motors can be used for all drivers of the plastic Injection moulding machinery, such as pump motors and injection drivers.
The advantages of YONGJIANG servo Injection machine are as follows:
traditional injection machines have the speed and power of using AC motors (running at a fixed speed) and various types of pumps. Although they are still less cost than servo motors or all-electric machines, their power consumption is high, so they are more expensive to operate. traditional injection machines can modify the variable speed control of the motor to improve energy efficiency. Compared with traditional AC motors, servo motors have many advantages. They can be controlled more accurately, consume less power, weigh less, and are considerable. On the other hand, their cost is quite high.plastic Injection moulding machinery understand the point.
Advantages of servo motor injection molding machine:
Now, servo Injection machine has been widely accepted by clients and their uses are becoming more diverse. In plastic Injection moulding machinery industry,Servo motors have many advantages:
● Quick pressure response, fast startup to 0.05 seconds
● The system response speed is 2-3 times that of traditional machines.
● Fast and precise operation greatly improves production environment and efficiency.
● The accuracy of repeat products can be improved to more than five thousandths, meeting the requirements of ultra-precision injection molding machine companies.
● The servo motor get a signal, then fills the hydraulic oil, generates less heat, and the hydraulic oil temperature is lower, saving a lot of cooling water.
● Fast response speed, short cycle time, and improved production efficiency.
● Servo motor Injection molding machine can save 50-80% of electricity.
The big difference between a traditional machine and a servo Injection machine is mainly the motor type (also called servo motor)
● traditional Injection machine: runs continuously, even if the machine's movement stops, the motor keeps rotating.YONGJIANG servo motor Injection molding machine improved it with servo motor.
● Servo Injection machine: each different action will use corresponding power to supply energy, and since the machine does not move, the servo motor will completely stop.
In servo motor injection molding machine, the servo motor replaces the conventional AC motor. Since the servo motor itself is a closed-loop control system, it can provide corresponding torque according to changes in pressure values to achieve control. Servo motors can be used for all drivers of the plastic Injection moulding machinery, such as pump motors and injection drivers.
The advantages of YONGJIANG servo Injection machine are as follows:
traditional injection machines have the speed and power of using AC motors (running at a fixed speed) and various types of pumps. Although they are still less cost than servo motors or all-electric machines, their power consumption is high, so they are more expensive to operate. traditional injection machines can modify the variable speed control of the motor to improve energy efficiency. Compared with traditional AC motors, servo motors have many advantages. They can be controlled more accurately, consume less power, weigh less, and are considerable. On the other hand, their cost is quite high.plastic Injection moulding machinery understand the point.
Advantages of servo motor injection molding machine:
Now, servo Injection machine has been widely accepted by clients and their uses are becoming more diverse. In plastic Injection moulding machinery industry,Servo motors have many advantages:
● Quick pressure response, fast startup to 0.05 seconds
● The system response speed is 2-3 times that of traditional machines.
● Fast and precise operation greatly improves production environment and efficiency.
● The accuracy of repeat products can be improved to more than five thousandths, meeting the requirements of ultra-precision injection molding machine companies.
● The servo motor get a signal, then fills the hydraulic oil, generates less heat, and the hydraulic oil temperature is lower, saving a lot of cooling water.
● Fast response speed, short cycle time, and improved production efficiency.
● Servo motor Injection molding machine can save 50-80% of electricity.
welcome to visit YONGJIANG plastic Injection moulding machinery companies in China.we are looking for sales Agent/Representative in the global market.

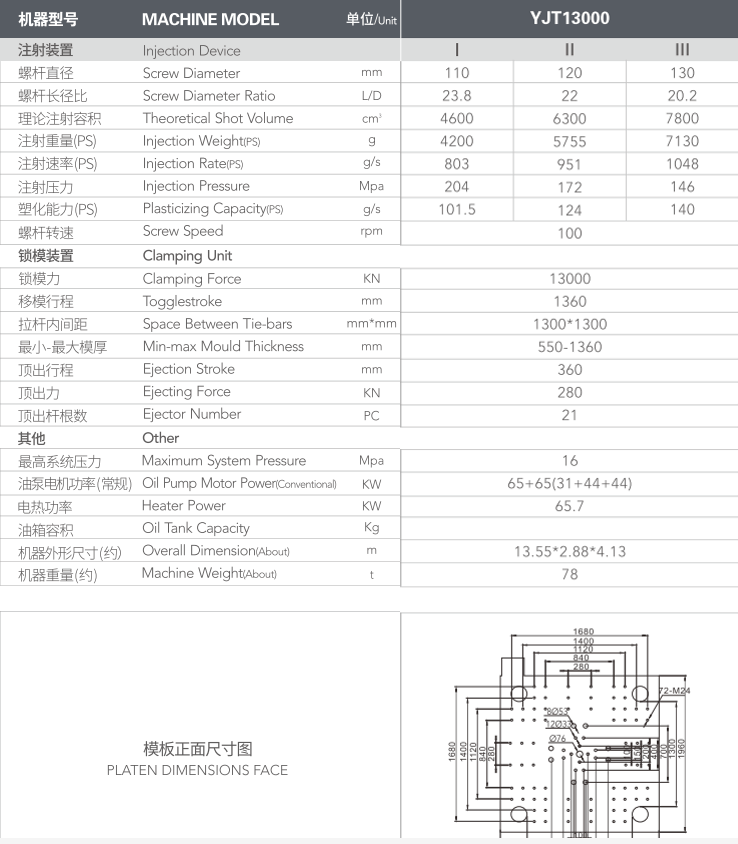

Servo Injection Machine 1300TON specification：
