Servo energy-saving injection molding machine 480TON
YJS480
Injection Weight(PS): 1707~2193g
Plasticizing Capacity(PS): 51~58g/s
Clamping force: 4800KN
Toggle stroke: 770mm
Tie bar space: 780x780mm
Servo motor power: 45KW
Heater power: 37KW
Machine dimension: 8500x1865x2505mm
YONGJIANG injection moulding machines have been exported to more than 35 countries.
The range of clamping force is from 100 ton to 3000 ton, and the range of injection weight is from 80g to 45000g.
Quantity
China leading supplier for servo motor plastic Injection molding machine
YONGJIANG hydraulic Injection machine
As a top brand Injection molding machinery manufacturer in China,YONGJIANG group was built in year 1997,and focus on the servo motor plastic injection molding machine research and development with 28 years. we have developped successfully different types of injection molding machinery such as servo motor plastic Injection molding machine and PET preform hydraulic Injection machine,and paint bucket hydraulic injection machine.
How does servo motor plastic injection molding machine work?
The difference between traditional hydraulic injection machine and servo motor plastic injection molding machine is their motor, which drives the machine differently.
● traditional hydraulic injection machine: continuous operation, even if the machine stops, the motor continues to rotate.
● Servo motor plastic injection molding machine: each different action will use the corresponding power supply. Since the machine is not moving, the servo motor will stop completely.
In the servo injection molding machinery, the servo motor replaces the traditional AC motor. Since the servo motor itself is a closed-loop control system, it can provide corresponding torque according to changes in pressure values to achieve control. Servo motors can be used for all types of Injection molding machinery.
traditional hydraulic injection machine has different speeds and power of AC motors (running at a fixed speed) and various types of pumps. Although they are still cheaper than servo motors or full-electric ones, they consume a lot of electric power, so they are more expensive to operate. Traditional hydraulic injection machine can modify the variable speed control of the motor to improve energy efficiency. Compared with traditional AC motors, servo motors have many advantages. They can be controlled more precisely, consume less power, are lighter and durable. On the other hand, their cost is high.YONGJIANG servo Injection molding machinery can help you save the power cost greatly.
Advantages of YONGJIANG servo motor plastic injection molding machine：
Today, servo energy-saving injection molding machinery has been widely accepted by users and are increasingly used in a variety of fields. Servo motors have many advantages:
● Quick pressure response and fast start-up in 0.05 seconds
● System response speed is 2-3 times faster than traditional hydraulic injection machine.
● Fast and precise operation greatly improves production efficiency and production environment.
● The precision of repeated products can be improved to more than one-fifth, meeting the requirements of ultra-precision injection molding.
● Servo motors acquire signals, fill hydraulic oil, and generate less heat, lower hydraulic oil temperature, and save a lot of cooling water.
● Fast response speed and short cycle time improve production efficiency.
● Servo energy-saving injection molding machinery can save 50-80% of electricity.
The difference between traditional hydraulic injection machine and servo motor plastic injection molding machine is their motor, which drives the machine differently.
● traditional hydraulic injection machine: continuous operation, even if the machine stops, the motor continues to rotate.
● Servo motor plastic injection molding machine: each different action will use the corresponding power supply. Since the machine is not moving, the servo motor will stop completely.
In the servo injection molding machinery, the servo motor replaces the traditional AC motor. Since the servo motor itself is a closed-loop control system, it can provide corresponding torque according to changes in pressure values to achieve control. Servo motors can be used for all types of Injection molding machinery.
traditional hydraulic injection machine has different speeds and power of AC motors (running at a fixed speed) and various types of pumps. Although they are still cheaper than servo motors or full-electric ones, they consume a lot of electric power, so they are more expensive to operate. Traditional hydraulic injection machine can modify the variable speed control of the motor to improve energy efficiency. Compared with traditional AC motors, servo motors have many advantages. They can be controlled more precisely, consume less power, are lighter and durable. On the other hand, their cost is high.YONGJIANG servo Injection molding machinery can help you save the power cost greatly.
Advantages of YONGJIANG servo motor plastic injection molding machine：
Today, servo energy-saving injection molding machinery has been widely accepted by users and are increasingly used in a variety of fields. Servo motors have many advantages:
● Quick pressure response and fast start-up in 0.05 seconds
● System response speed is 2-3 times faster than traditional hydraulic injection machine.
● Fast and precise operation greatly improves production efficiency and production environment.
● The precision of repeated products can be improved to more than one-fifth, meeting the requirements of ultra-precision injection molding.
● Servo motors acquire signals, fill hydraulic oil, and generate less heat, lower hydraulic oil temperature, and save a lot of cooling water.
● Fast response speed and short cycle time improve production efficiency.
● Servo energy-saving injection molding machinery can save 50-80% of electricity.
welcome to visit YONGJIANG servo motor plastic Injection molding machine company which is located in ningbo China.

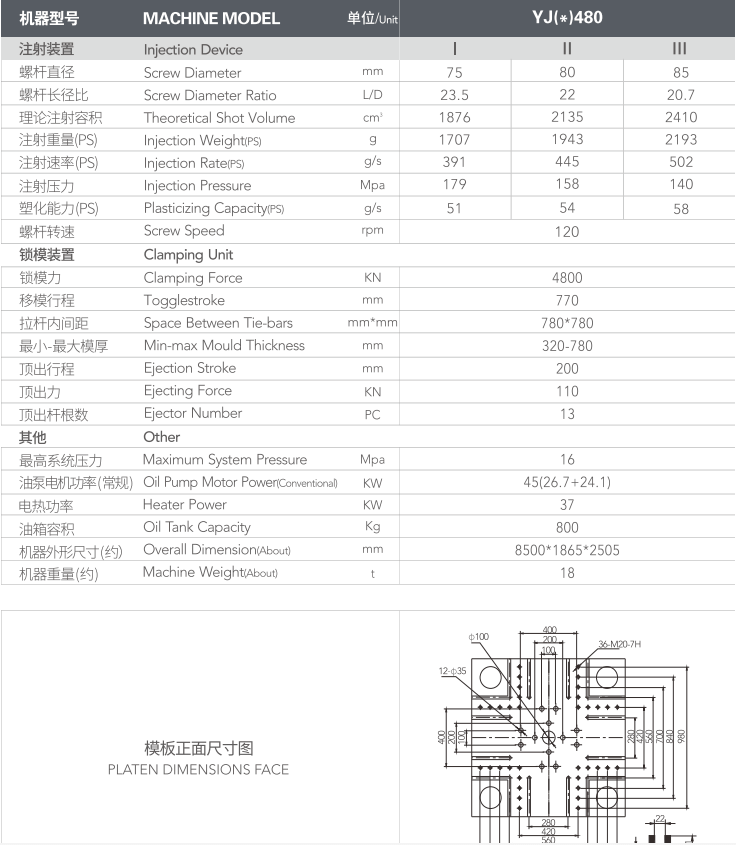

injection molding machinery 480TON specification：
