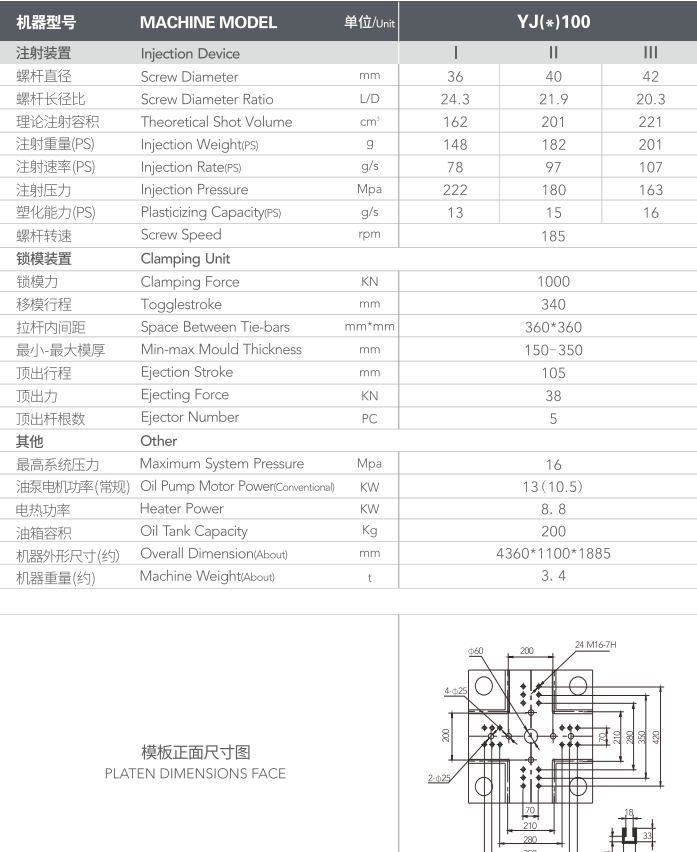

Servo energy-saving injection molding machine 100TON

As China servo injection machine manufacturer,YONGJIANG focus on the different types of hydraulic clamping injection molding machine since year 1997.The small injection molding machine is suitable for producing electronic products, color plates, and other small plastic parts. because of Its small size and fast speed, China servo Injection machine are well received by customers.
Mold clamping unit of hydraulic clamping Injection molding machine: the internal structure is a five-point elbow lock mold mechanism, reinforced with finite element analysis, effectively reducing stress and deformation, and improving the rigidity and precision of the mold clamping structure of small Injection mold machine. China servo injection machine studied the it as well.
The support of the moving platen uses a slider-adjustable support system to improve the parallelism of the platen, protect the tie bar and the mold, and extend their service life. China servo Injection machine improved this technology.
The tie bar is made of high-quality alloy structural steel, which is strictly processed and plated with hard chromium, and has high strength and wear resistance for small injection mold machine.
Injection unit of China servo Injection machine: each machine model has multiple screw diameters to choose from, which can adapt to a wider range of customer products. A variety of special engineering screws ensure product optimization.
High-quality alloy nitrided or chrome-plated screws, nitrided barrel, have the characteristics of corrosion resistance, wear resistance, and long service life.
The injection unit uses dual-column support and dual-barrel balanced injection device to ensure uniform force balance of the screw during the injection process.
Hydraulic of small Injection mold machine: The oil circuit board is distributed near the actuator (oil cylinder, oil motor), which has a fast response speed and good dynamic performance.
The pre-plastic back pressure allows the melt to be precise and stable, which can meet the different injection molding processes of various new products.
The control valve is used to accurately control each movement of the hydraulic clamping injection molding machine. The quantitative pump control system has stable output, fast response speed, and strong force.
All main hydraulic components and sealing components are branded for small Injection mold machine.
Electric control of China servo Injection machine:
LEDs display the input/output status, making it easier for operators and maintenance personnel to understand the system's action status of small injection mold machine.
The keyboard lock function is set to prevent operators from arbitrarily changing the molding data.
Precise control of the barrel temperature is achieved through computer setting and PID closed-loop mode, with a temperature range of 0-399°C. hydraulic clamping Injection molding machine has this advantage.
The fully enclosed electrical control box has a neat layout of electrical components, is dustproof and waterproof, and the control panel uses an LCD color screen to monitor the production process in real time and display various fault diagnoses.
The dedicated computer control system for china servo injection machine is easy to operate and has a fast response cycle.
Lubrication of small injection mold machine: The design of the elbow with oil storage bushing is equipped with a centralized automatic lubrication system. This results in better lubrication of various components and improves the service life of the joints of hydraulic clamping injection molding machine.
welcome to visit YONGJIANG small injection mold machine manufacturer which is located in ningbo China.
