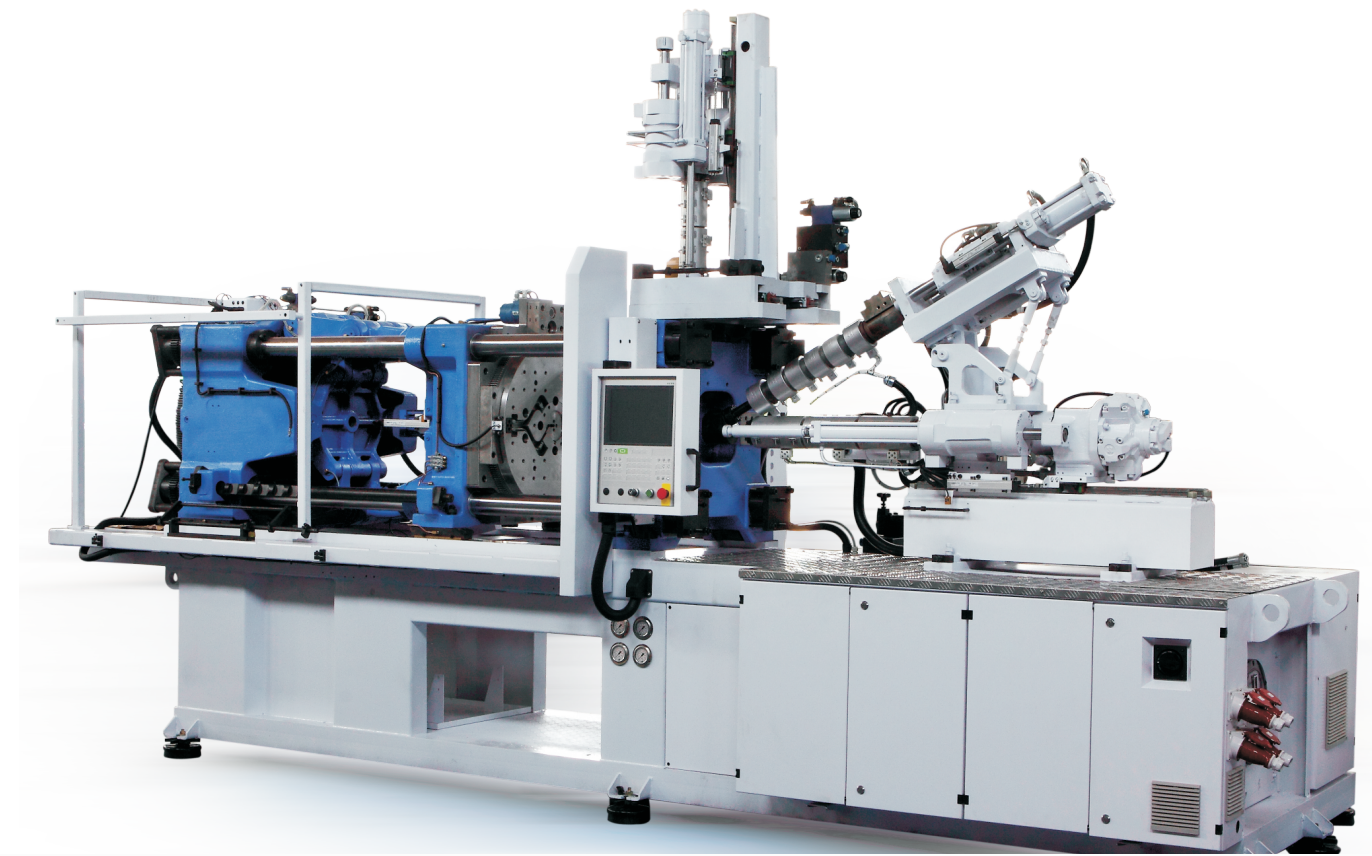

Mixed color machine 120TON
YJM-120

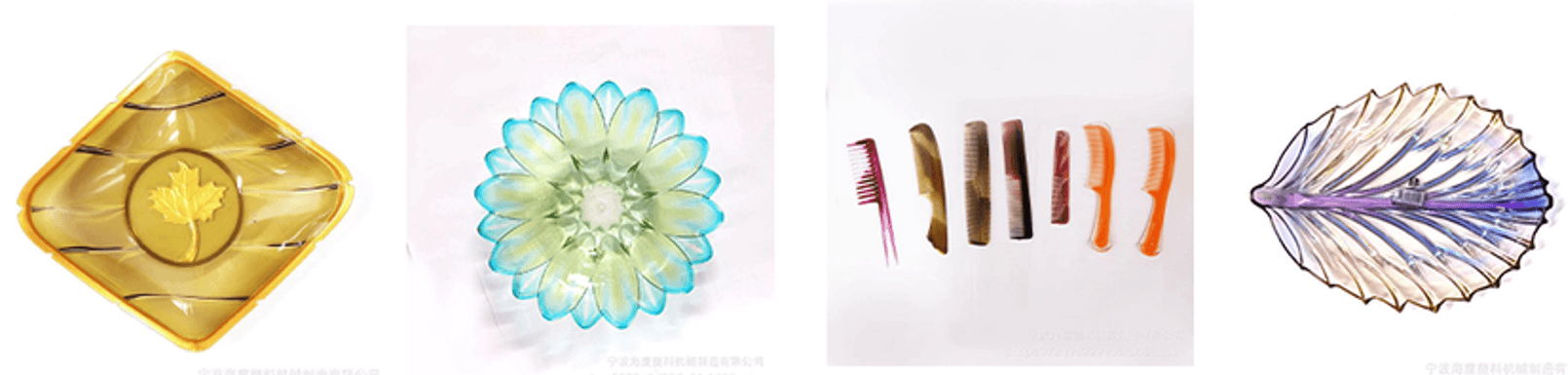

1. With two injection units, it can inject synchronously or alternately through controlling two screws by the professional computer so as to get the plastic products with beautiful color.
2. Also can manufacture the sandwich plastic products, and the cost is reduced;
3. Can be widely used with PP, PE, PS and other raw materials in two color products.
2. Also can manufacture the sandwich plastic products, and the cost is reduced;
3. Can be widely used with PP, PE, PS and other raw materials in two color products.
Quantity
China leading multi color Injection molding machine manufacturer
YONGJIANG two color Injection machine
What is the Multi-color injection molding process?
it refers to the injection molding of two or more colors of materials or different materials through a mold with one or more runners. The earliest representative was multi color injection molding machine, the most common in our daily life is also two-color products, such as the handle of the toothbrush we use every day, which adopts two-color injection molding. The commonly used material for the handle is PP (hard rubber) + TPE (soft rubber). TPE is the material that blends best with PP coating, and the coating is to improve the grip comfort.As a China leading factory in Injection mould machine industry,YONGJIANG multi color Injection molding machine focus on the two color Injection technology.
The working principle of two-color Injection mould machine：
The two-color mold usually has two sets of molds, one half is installed on the fixed plate of the two color injection machine, which is the side with the injection molding gate, and the other half is installed on the rotating plate of the movable mold, which is the side of the mold that is ejected. The rear molds of these two sets of molds are usually the same, while the front molds are different. After the first material is injected into the first mold, the fixed and movable molds of the injection mould machine are opened, and the rotating plate with the rear mold of the two molds rotates 180°, at this time, the semi-finished product of the rear mold of the first mold is not ejected, and then the mold is closed for the injection molding of the second material (during this process, the first material continues to be inject into the second mold as a semi-finished product), after the cooling and insulation process, the fixed and movable molds are opened, and the finished product of the movable mold of the first mold is ejected. This is a process of a molding cycle, during each molding cycle, one semi-finished product and one finished product will be produced.YONGJIANG keep improving the technology of two color Injection machine.
Types of multi color injection molding machine：
According to the arrangement of injection units (sub platens), the configuration of two color injection machine can be divided into:
1. The structure of the multi color injection molding machine can be divided into five types: P-type (parallel double shot), L-type (right-angle double shot), V-type (vertical double shot), W-type (inclined back double shot), and H-type (opposing double shot).
These types of two color injection machine have their own characteristics, and users need to choose according to their own needs. Among them, V-type and L-type are more widely used in injection mould machine in Europe, while Japanese and domestic Injection mould machine mostly use P-type.
2. The structure of the three-color injection mould machine can be divided into five types: right-angle three-color-L type, vertical three-color-V type, back three-color-LW type, back three-color-VW type, and independent three-color-LV type.
Welcome to visit YONGJIANG two color Injection machine company,we are looking for sales agent/representative in the global market.
it refers to the injection molding of two or more colors of materials or different materials through a mold with one or more runners. The earliest representative was multi color injection molding machine, the most common in our daily life is also two-color products, such as the handle of the toothbrush we use every day, which adopts two-color injection molding. The commonly used material for the handle is PP (hard rubber) + TPE (soft rubber). TPE is the material that blends best with PP coating, and the coating is to improve the grip comfort.As a China leading factory in Injection mould machine industry,YONGJIANG multi color Injection molding machine focus on the two color Injection technology.
The working principle of two-color Injection mould machine：
The two-color mold usually has two sets of molds, one half is installed on the fixed plate of the two color injection machine, which is the side with the injection molding gate, and the other half is installed on the rotating plate of the movable mold, which is the side of the mold that is ejected. The rear molds of these two sets of molds are usually the same, while the front molds are different. After the first material is injected into the first mold, the fixed and movable molds of the injection mould machine are opened, and the rotating plate with the rear mold of the two molds rotates 180°, at this time, the semi-finished product of the rear mold of the first mold is not ejected, and then the mold is closed for the injection molding of the second material (during this process, the first material continues to be inject into the second mold as a semi-finished product), after the cooling and insulation process, the fixed and movable molds are opened, and the finished product of the movable mold of the first mold is ejected. This is a process of a molding cycle, during each molding cycle, one semi-finished product and one finished product will be produced.YONGJIANG keep improving the technology of two color Injection machine.
Types of multi color injection molding machine：
According to the arrangement of injection units (sub platens), the configuration of two color injection machine can be divided into:
1. The structure of the multi color injection molding machine can be divided into five types: P-type (parallel double shot), L-type (right-angle double shot), V-type (vertical double shot), W-type (inclined back double shot), and H-type (opposing double shot).
These types of two color injection machine have their own characteristics, and users need to choose according to their own needs. Among them, V-type and L-type are more widely used in injection mould machine in Europe, while Japanese and domestic Injection mould machine mostly use P-type.
2. The structure of the three-color injection mould machine can be divided into five types: right-angle three-color-L type, vertical three-color-V type, back three-color-LW type, back three-color-VW type, and independent three-color-LV type.
Welcome to visit YONGJIANG two color Injection machine company,we are looking for sales agent/representative in the global market.

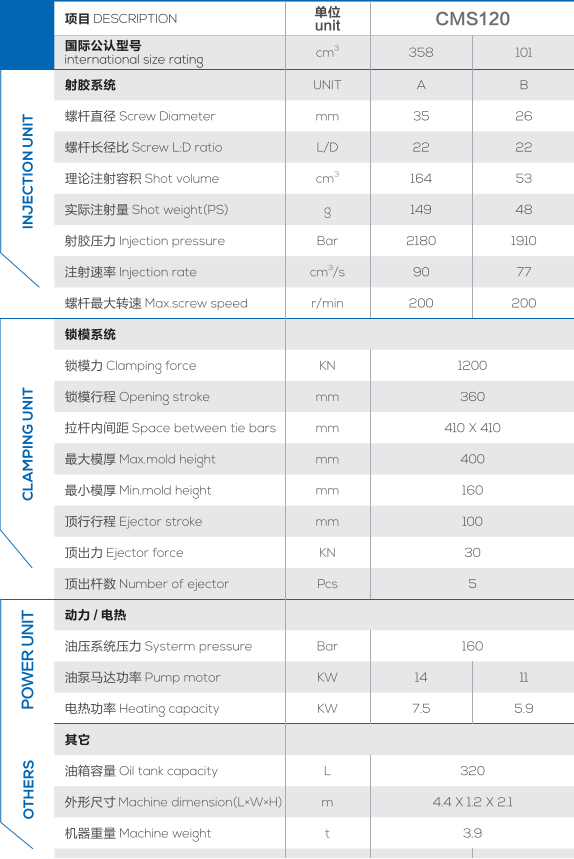

multi color Injection molding machine 120TON specification：
